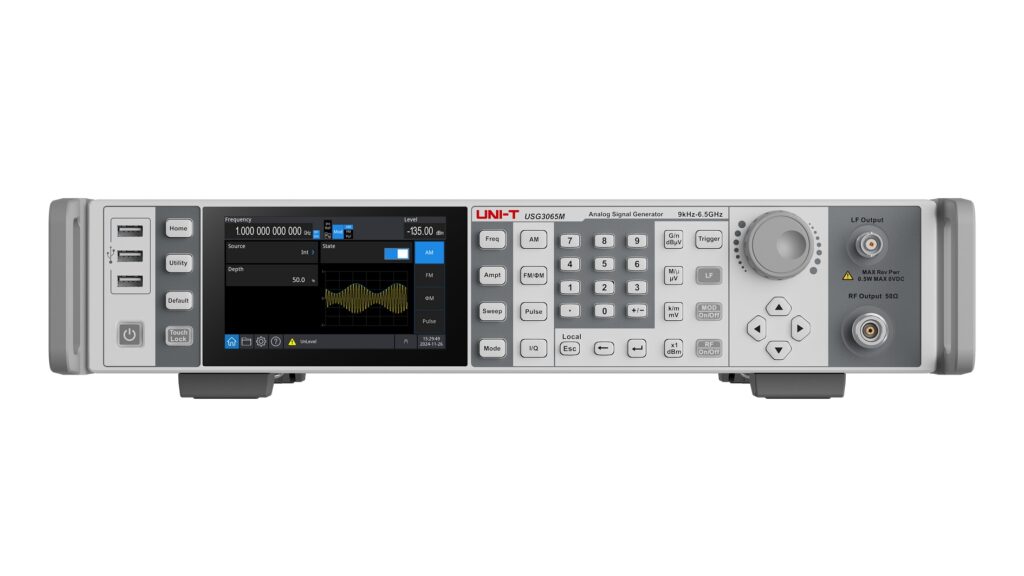

April 3, 2025 – UNI-T is proud to announce the release of the new USG3000M Series RF Signal Generators, delivering laboratory-grade RF performance for today’s most demanding test applications. With frequencies ranging from 9 kHz to 6.5 GHz, the USG3000M series combines exceptional signal purity with versatile modulation capabilities in a compact, user-friendly package.
Advanced RF Performance for Modern Test Challenges
The USG3000M Series addresses the growing need for precision RF signal generation across multiple industries. With its ultra-low phase noise (better than -122 dBc/Hz at 1 GHz, offset 20 kHz), wide output power range (-135 dBm to +25 dBm), and highly stable clock source, these generators deliver the clean, accurate signals required for cutting-edge applications in wireless communications, aerospace, automotive electronics, industrial manufacturing, and semiconductor testing.
“The USG3000M series represents our commitment to providing engineers and researchers with the precise tools they need for next-generation RF testing,” said Johnson Zhang, Product Manager at UNI-T. “We’ve focused on delivering exceptional signal quality while maintaining an intuitive interface that enhances productivity in both R&D and production environments.”
Key Features of the USG3000M Series
- Superior Signal Purity: Phase noise performance better than -122 dBc/Hz @ 1 GHz, offset 20 kHz ensures minimal signal distortion for even the most sensitive measurements
- Extensive Power Range: From -135 dBm to +25 dBm with amplitude accuracy better than 0.7 dB
- Versatile Modulation: Built-in support for AM, FM, and ΦM with internal, external, and composite modulation options
- Comprehensive Sweep Modes: Frequency, amplitude, and list sweeps with user-defined configurations and multiple triggering options
- High-Resolution Display: Intuitive 5-inch capacitive multi-touch screen with full touch control and visual representation of waveforms
- Built-in Function Generator: Integrated 50 MHz function/arbitrary waveform generator for additional test capabilities
- Flexible Connectivity: Multiple communication interfaces including LAN, USB, and optional GPIB
Model Lineup
The USG3000M series offers four models to meet various testing requirements:
- USG3045M: 9 kHz to 4.5 GHz RF signal generator with electronic attenuator
- USG3045M-P: 9 kHz to 4.5 GHz RF signal generator with mechanical attenuator for enhanced power accuracy
- USG3065M: 9 kHz to 6.5 GHz RF signal generator with electronic attenuator
- USG3065M-P: 9 kHz to 6.5 GHz RF signal generator with mechanical attenuator for enhanced power accuracy
Enhanced Testing Capabilities with Optional Features
The USG3000M series can be further expanded with several optional features:
- Pulse Modulation (USG3000M-PM): Achieve on-off ratios of up to 80 dB for radar and communications testing
- Narrow Pulse Generator (USG3000M-PG): Generate pulses as narrow as 20 ns with 10 ns resolution, ideal for automotive millimeter-wave radar testing
- Power Meter Kit (USG3000M-PK): Enable power measurement, output control, and line loss calibration
- GPIB Interface (USG3000M-GPIB): Add GPIB connectivity for legacy test systems
Industry Applications
The USG3000M series is designed to excel in multiple fields:
- Wireless Communications: Testing receivers, amplifiers, and transmission systems
- Aerospace: Radar system development and avionics testing
- Automotive Electronics: Vehicle communications systems and millimeter-wave radar testing
- Industrial Manufacturing: Production line testing and quality control
- Semiconductor: Device characterization and parametric testing
- Research and Education: Laboratory experiments and educational demonstrations
Remote Control and Automation
The USG3000M series offers comprehensive connectivity options for remote operation and automated testing:
- Web Control Interface: Access and control the instrument remotely via standard web browsers
- SCPI Command Support: Full support for standard SCPI commands enables integration with automated test systems
- Free Device Manager Software: UNI-T’s Device Manager software provides intuitive control via LAN, USB, or GPIB
Availability and Support
The USG3000M Series RF Signal Generators are available now through authorized UNI-T distributors. All models come with a comprehensive three-year warranty and are backed by UNI-T’s global technical support network.
For detailed specifications, pricing information, or to schedule a demonstration, visit the USG3000M Series product page or contact your local UNI-T representative.
About UNI-T
UNI-T is a leading manufacturer of precision test and measurement equipment, providing innovative solutions for electronic design, manufacturing, service, and educational applications. With over 20 years of experience in the test and measurement industry, UNI-T continues to develop instruments that help engineers and technicians work more efficiently and effectively. The company maintains research and development centers in Asia, Europe, and North America, ensuring cutting-edge technology and responsive customer support worldwide.
